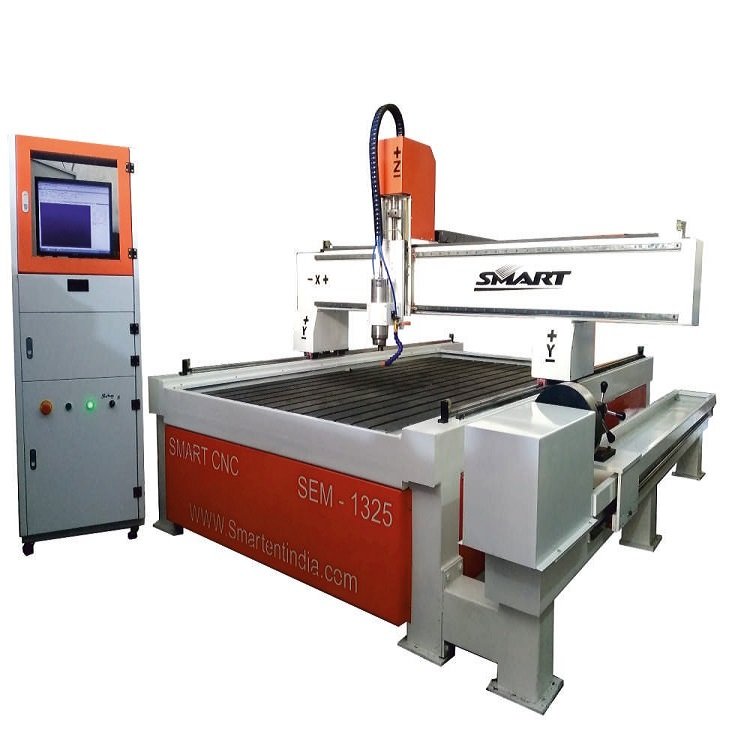

With our many years of industry experience, we are able to established a strong foothold in the industry by manufacturing and supplying a superior quality range of Stone CNC Router machine, wood carving cnc router machine.
These machines are widely used to process wooden products, advertising sign boards, and acrylic products. Our range of CNC routers is stringently checked before its delivery to ensure optimum functionality and durability. Moreover, these machines are also used for cutting and engraving on steel, copper, aluminum plate and various non-metal material. Our entire range of products is procured from the reliable and certified vendors of the market that precisely manufactures these products in conformity with international quality standards.
| SPECIFICATION | UNIT | Technical Parameter |
|---|---|---|
| X-Y-Z Axis working area | mm | 1300x 2500 x300 |
| Drive Motor | 86 kgcm | stepper Motor ( optionl : Servo motor ) Whit Planetary Gearbox |
| Operating system | PCI based Controller( optionl : DSP Hand Controller ) | |
| X – Y Movement | 20mm | LM guide way & ball screw ( HIWIN Taiwan ) |
| Z Movement | 20mm | Ball Screw |
| spindle | 5.5 kw wtaer colled optional 3 W | |
| Working Voltage | AC 415 V / 3 PH ,50 Hz | |
| Command code | HPGL, G Code | |
| Maximum Spindle Speed | mm/min | 18,000 |
| Resolutions | mm | 0.2 |
| Maximum Cutting speed | mm/min | 12,000 |
| Working Tabel | Aluminium T slot | |
| Material Holding | By Clamp or vaccume |
