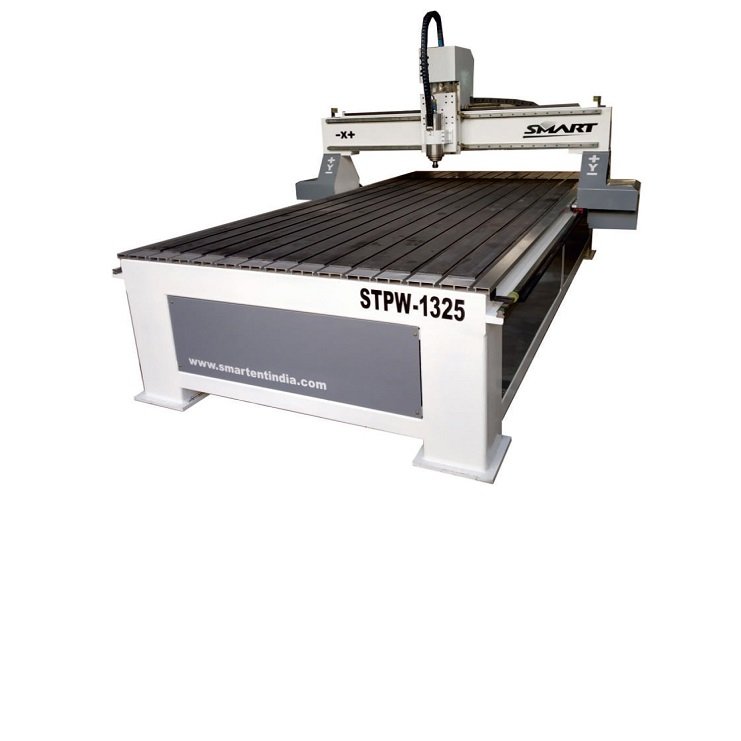

Owing to the efforts of our dedicated team of professionals, we have been constantly engaged in offering the best quality CNC Wood Machine STPW-1325.
The provided machine is widely demanded among our clients for its long service life and less maintenance features. This machine is uniquely manufactured by highly experienced professionals using premium grade components and modern technology. Further, to ensure the optimum performance, our quality experts test this machine against several quality parameters.
| SPECIFICATION | UNIT | Technical Parameter |
|---|---|---|
| X-Y-Z Axis working area | mm | 1300x 2500 x200 |
| Drive Motor | 86 kgcm | stepper Motor ( optionl : Servo motor ) Whit Planetary Gearbox |
| Operating system | PCI based Controller( optionl : DSP Hand Controller ) | |
| X – Y Movement | 20mm | LM guide way & ball screw ( HIWIN Taiwan ) |
| spindle | 6 kw Air cooled ( italy ) | |
| Colet Type & Size | Er 20 | |
| Oil Lubrication System | Standard | |
| Working Voltage | AC 415 V / 3 PH ,50 Hz | |
| Command code | HPGL, G Code | |
| Maximum Spindle Speed | mm/min | 18,000 |
| Resolutions | mm | 0.2 |
| Maximum Cutting speed | mm/min | 12,000 |
| Working Tabbel | Aluminium Tslot | |
| Material Holding | By Clamp or vaccume |
